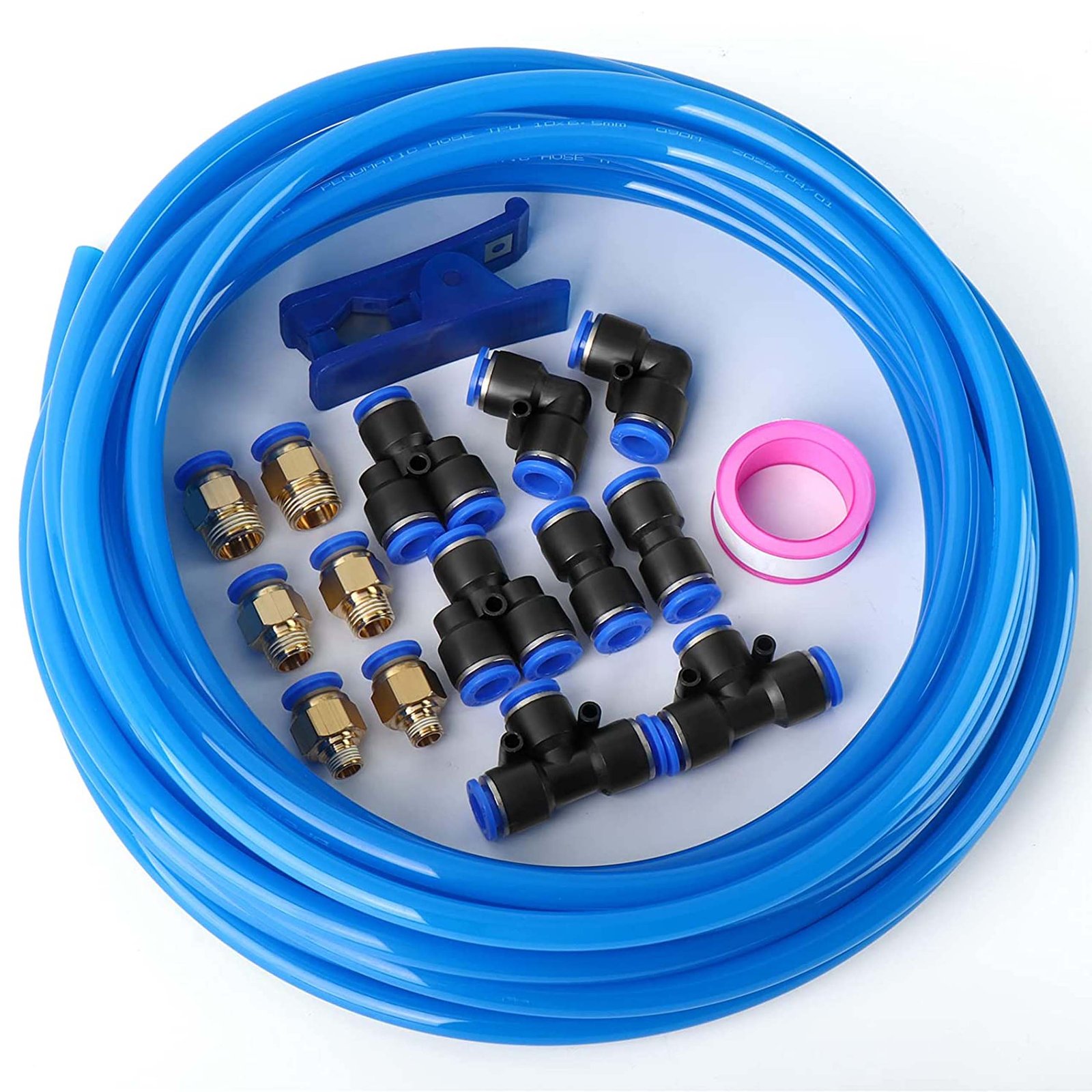

PU Tube Polyurethane Air Pipe (Forbest) -100 Meter

About Forbest Manufacturing Co., Ltd.

• Established in 1995, the company specializes in a range of insulation and tubing products—including PU tubing—among other materials like silicone, Teflon (PTFE), FEP, PVC.

• They serve industries such as medical, electronics, automotive, 3D printing, and household appliances.

• Key certifications and quality assurances include ISO 13485 (medical-grade quality), FDA, RoHS, and REACH, indicating strong compliance with international standards

• The company emphasizes custom manufacturing (OEM/ODM), quick delivery, and complete sample services.

So while Forbest does list PU tubing among its product categories, I wasn’t able to locate a detailed technical datasheet or specific product model for a PU air pipe offered by them through publicly available sources.

General Specs for Typical Polyurethane (PU) Air Tubing

I gathered some typical specifications from other manufacturers’ offerings for PU pneumatic tubing to give you a baseline. Note that these are not Forbest-specific but reflect industry norms:

From PRIO Technology:

• Material: Polyester & polyether-based polyurethane

• Sizes: OD 4–16 mm; ID varies accordingly

• Working Pressure: 6–12 bar (depending on size)

• Burst Pressure: 10–33 bar

• Temperature Range: –30 °C to +70 °C

• Mechanical Properties:

  • Hardness: 98A (Shore A)

  • Tensile Strength: ~600 kg/cm²

  • Elongation: 490–590%

  • Taber Abrasion: 30–40 mg

  • Tear Strength: 155 kg/cm² prio.co.in

From VPC/Ningbo VPC Pneumatic:

• Material: Polyester PU (hardness 95A–98A)

• Temp Range: –20 °C to +80 °C

• Sizes & Pressures:

  OD × ID (mm)	Working Pressure	Burst Pressure	Bending Radius
  3 × 2	10 bar	30 bar	10 mm
  4 × 2.5	10 bar	30 bar	10 mm
  6 × 4	10 bar	30 bar	15 mm
  8 × 5.5	8 bar	24 bar	20 mm
  10 × 6.5	10 bar	30 bar	30 mm

From general pneumatic listings in Bangladesh:

• Sizes: 4×2.5, 6×4, 8×5, 10×6.5, etc.

• Working Pressure: ~10 kgf/cm² (≈10 bar)

• Temp Range: –40 °C to +80 °C (fluid); –40 °C to +80 °C (non‑chemical gas)

• Tensile Strength: ~400 kgf/cm²

• Wear Resistance: ~35 mg

• Tear Strength: ~110 kg/cm²
