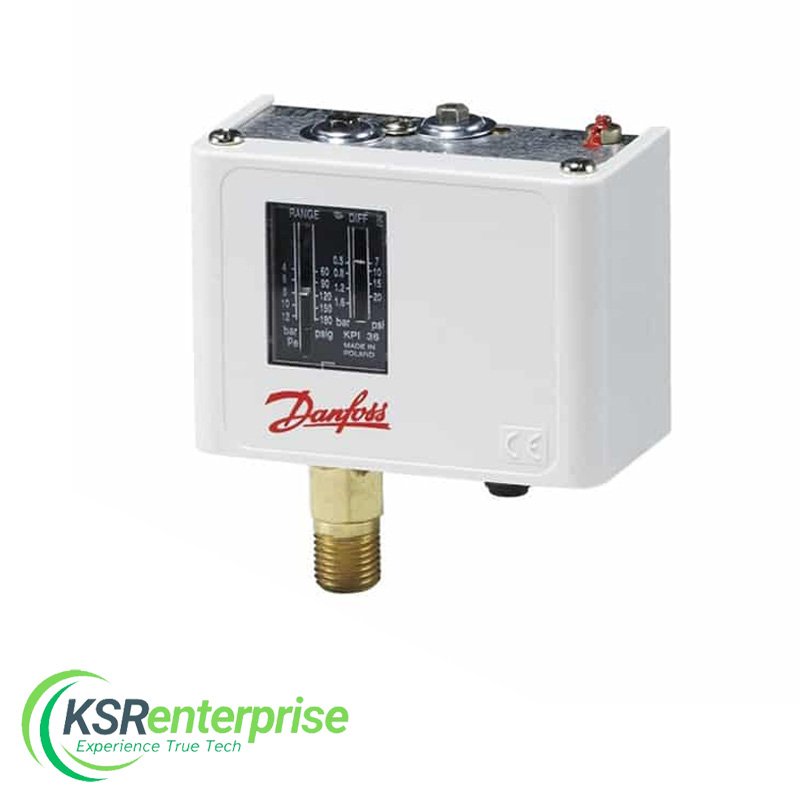

The Danfoss KPI pressure switch is used for regulating, monitoring and alarm systems in industrial applications. The Danfoss KP switches are suitable for a plant in connection with liquid and gaseous media. They are fitted with a single-pole switch changeover (SPDT). The Danfoss KPI pressure switch includes pressure ranges of -0.2 to 28 bar, high contact load, ultra-short bounce-time, and is available with gold plated contact systems. The KPI series is adjustable with a differential enclosure of IP44 when mounted with a top cover and backplate.
Regulation range -0.2…28 bar
Media temperature -40…100°C
Pressure connection type G, NPT
Contact function SPDT (Gold)
Electrical connection Rubber cable gland, Screwed cable entry
Enclosure rating IP IP30, IP55
