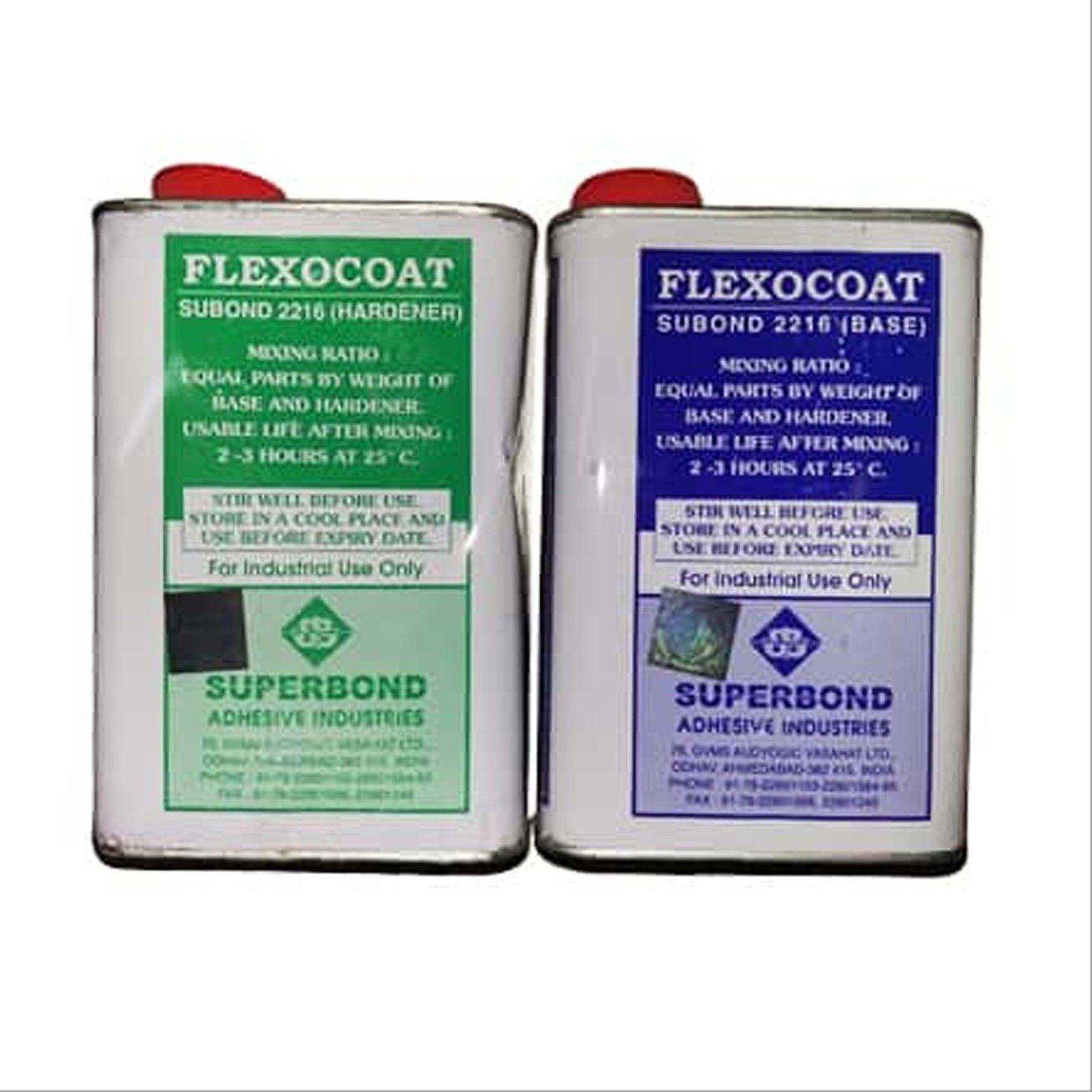

Flexocoat Subond 2216 (Hardener) – Liquid Insulation -1 Litter

Flexocoat Subond 2216 – Liquid Insulation & Hardener

Flexocoat Subond is a high-performance, two-component epoxy-based liquid insulation system designed for use in induction furnace coil insulation and other high-temperature, high-voltage industrial applications. It consists of a Base Resin and a Hardener, which when mixed in equal proportions (1:1 by weight), form a tough, flexible, and electrically resistant coating.

🔧 Key Features:

• Excellent adhesion to copper and stainless steel surfaces

• Strong electrical insulation (up to 400 V/mil)

• Withstands high thermal and mechanical stress

• High dielectric strength – tested up to 6000V DC

• Good chemical and moisture resistance

• Easy to apply by brush or spatula

• Available in white and grey variants

📦 Typical Applications:

• Insulation of induction furnace coils

• High-voltage electrical components

• Heat-exposed surfaces in industrial equipment

🧪 Technical Specs:

• Mixing Ratio: 1:1 by weight (Base : Hardener)

• Pot Life: 2–3 hours at 25 °C

• Curing Time:

  • Room temperature: 12–16 hours

  • 60°C: 2 hours

  • 90°C: 30 minutes

• Shelf Life: 6 months (if stored properly)

• Coverage: 0.6 – 0.8 m² per kg at 1 mm thickness
